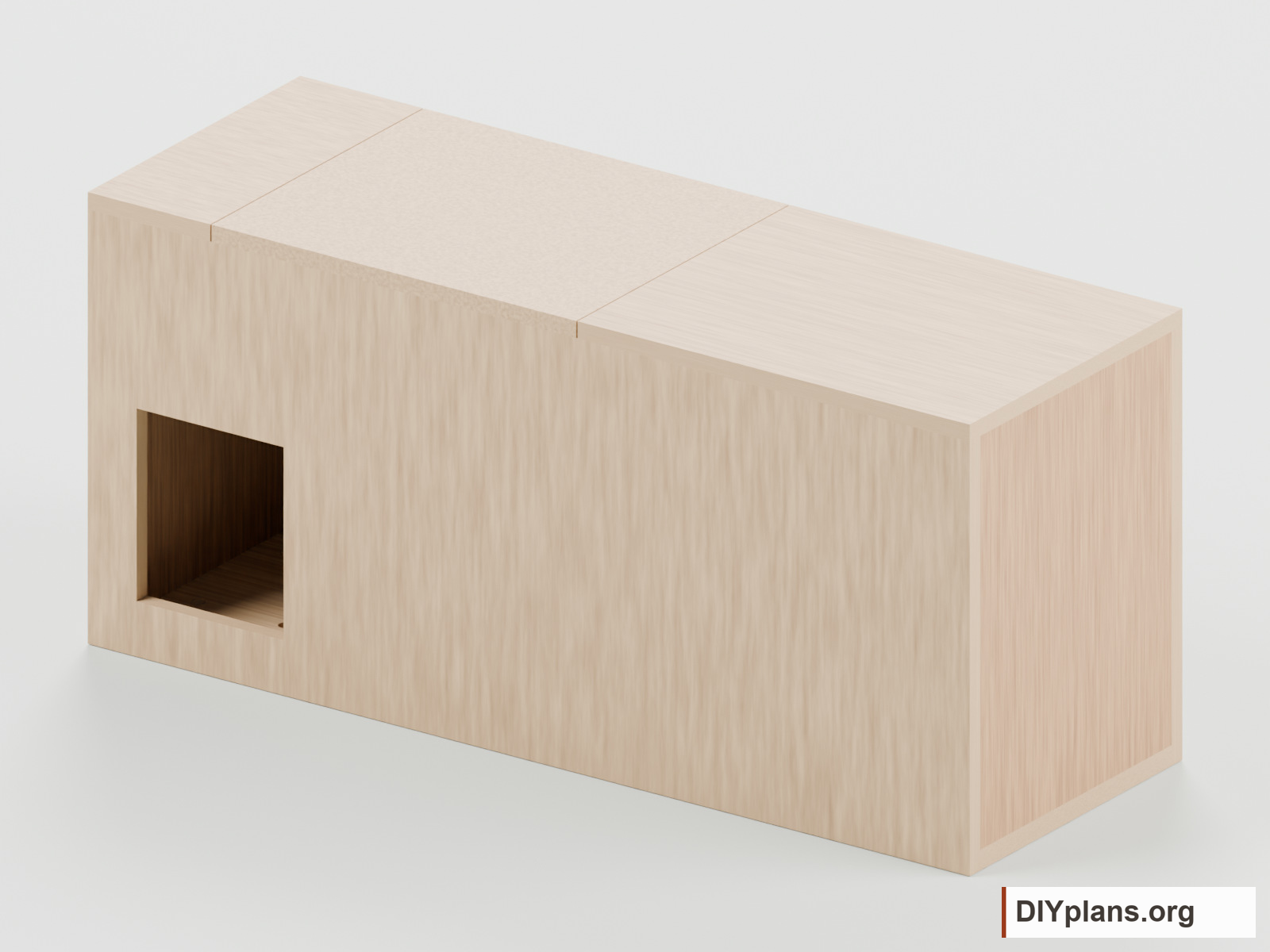

Instructions
Step 1 Lay out the stock
- Mark the plywood front and back at 36 x 15 3/4 in each. Mark a 37 x 12 1/2 in roof blank.
- Allow 1/8 in between cuts.
- Cut the 37 in roof blank into a 5 in fixed strip, a 15 in lid blank, and a 16 in fixed panel. The extra inch allows three 1/8 in saw cuts and trimming.
- Crosscut the cedar floor at 36 in and two sides at 15 in.
Check: All eight wooden parts are marked and cut with allowance for the roof lid clearances.
Step 2 Cut the entrance and drainage

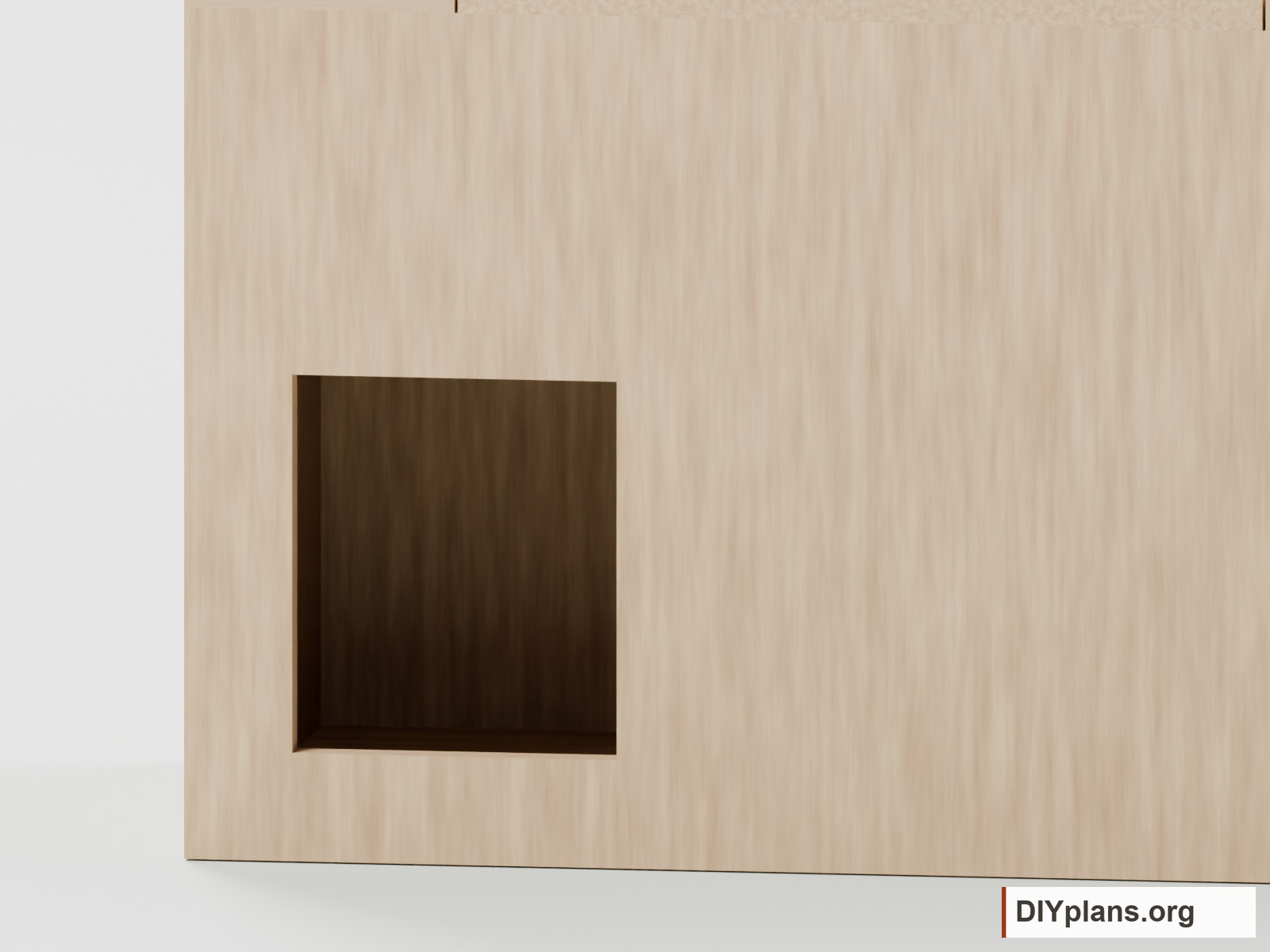

- Mark a 6 in wide x 7 in high rectangle with its left edge and bottom 2 in from the front left and bottom.
- Drill a starter hole inside the waste, then cut out the entrance.
- Drill twenty 1/2 in holes through the floor. Use two rows 3 and 8 1/4 in from the front edge; locate ten holes equally from 2 to 34 in along each row.
- Sand the entrance and drain-hole edges smooth. Keep the interior unfinished.
Check: The entrance measures 6 x 7 in, has smooth edges, and all twenty floor drain holes are open.
Step 3 Join the floor and end sides
- Stand each 15 in side on the floor with its outer face flush with a 36 in floor end. The side depth is 11 1/4 in.
- Predrill and drive three 1 5/8 in screws up through the floor into each side, spaced across its depth.
- Check both sides stand square. The wall tops should be 15 3/4 in above the floor underside.
Check: Both sides stand square on the floor and their tops are 15 3/4 in above the floor underside.
Step 4 Attach the front and back
- Fit the 36 x 15 3/4 in front and back over the floor and side edges, keeping their bottoms flush with the floor underside.
- Drive four screws into the floor edge and four into each side edge for each panel. Stagger intersecting screws at corners.
- Check the outside depth is 12 1/2 in, and the entrance is on the front left.
Check: The outside depth is 12 1/2 in, the entrance is at the front left, and the panels are square.
Step 5 Secure the fixed roof panels
- Place the 5 in strip over the left end and the 16 in panel over the right end. Keep their outside edges flush with the box ends.
- Fix the left strip with two screws and the right panel with three screws into wall edges. Predrill and keep the center 15 in lid opening clear.
- Trim the lid to 14 7/8 in wide and dry-fit it between the fixed panels, with 1/16 in clearance on both sides.
Check: The fixed roof panels are secure and the fitted lid has 1/16 in clearance at each side.
Step 6 Hang and test the roof lid
Play animationStop animation
Loading image
Loading image- Attach two surface hinges along the lid right edge, about 2 1/2 in from the front and rear. Position the hinge pin at the roof top surface over the seam.
- Use the selected short hinge screws without protruding tips. Lift the lid to 90 degrees and check the opening motion shown.
- Fit two latch screws beside the left seam and tie them with doubled wire. Keep sharp wire ends outside and turn them inward.
Check: The lid opens through 90 degrees without binding, closes securely, and has no inward-projecting screws or wire.

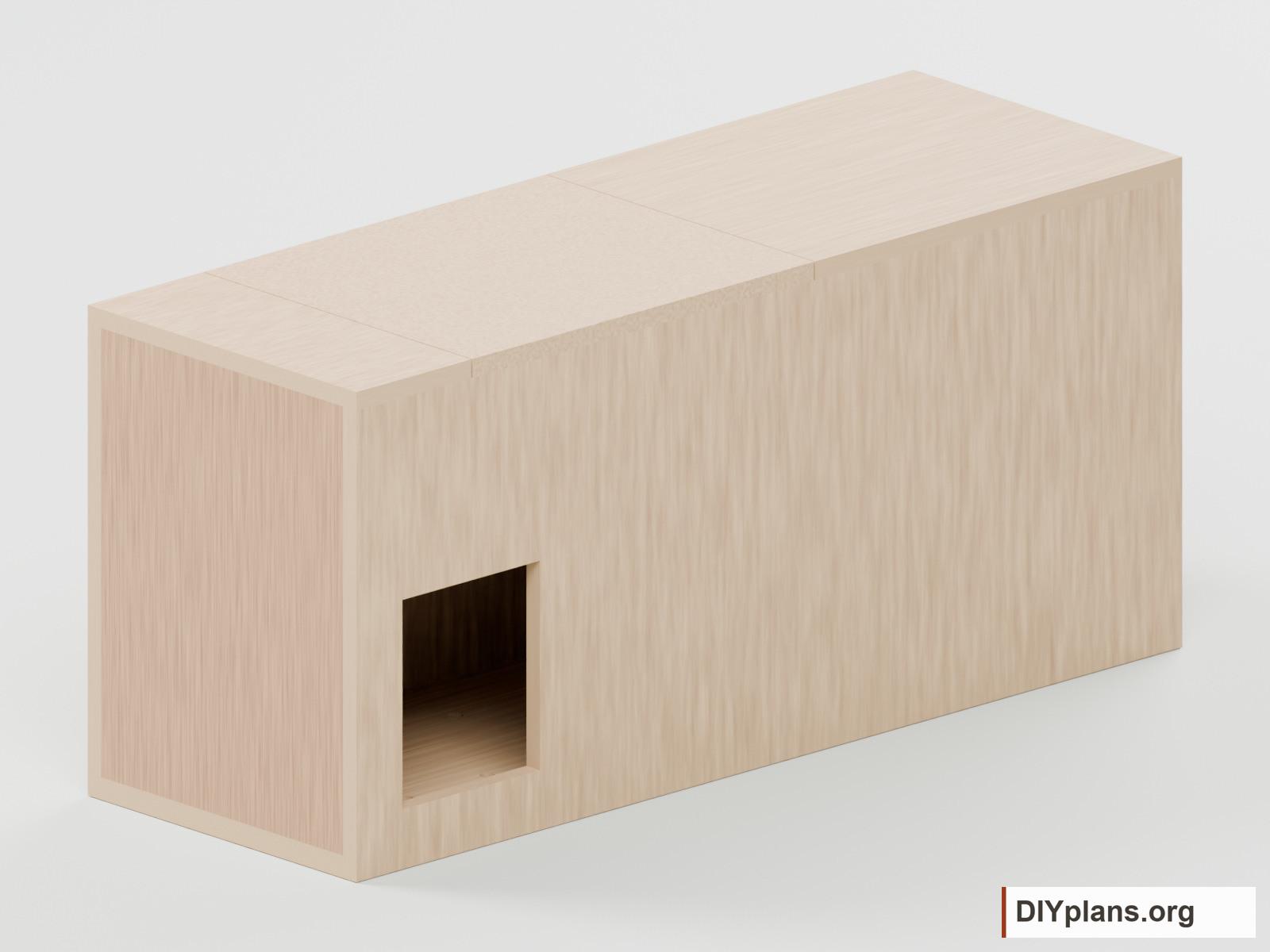

Step 7 Install on a sound cross-beam
- Select a sound interior cross-beam that supports the floor and leaves the entrance facing into the building. Arrange safe access and assistance for installation.
- Choose mounting fasteners for the beam and fix through the floor outside the drain-hole rows. The box and beam connection must resist sliding, tipping and uplift.
- Check the lid remains accessible, the wire latch is closed, and no screw tips protrude into the chamber. Leave the interior bare and follow local wildlife guidance for monitoring an occupied box.
Check: The beam connection prevents sliding, tipping and uplift, and the closed lid remains accessible.
Sources
Functional dimensions informed by the cited Washington Department of Fish and Wildlife woodworking sheet. CAD, instructions, schedules and illustrations authored for DIY Plans.
