Plan details

DIY brush jump plans for horses

Explore a long, low brush-jump form. The timber holder is 120 in long and 24 in high, supported by three transverse feet. A dashed reference shows brush extending 6 in above the timber. This is a visual design reference, not a construction plan.

Explore a long, low brush-jump form. The timber holder is 120 in long and 24 in high, supported by three transverse feet. A dashed reference shows brush extending 6 in above the timber. Design inspiration with dimensioned drawings, editable concept models and an indicative timber takeoff.

Open the native file in FreeCAD to inspect or edit individual solid components. The dimension spreadsheet is informational and does not regenerate geometry.

The STEP export carries matching concept geometry. Missing joints, cups and anchorage are intentional omissions from this visual reference.

Save changes in a separate study file. When changing dimensions, update the related model geometry and reference quantities together.

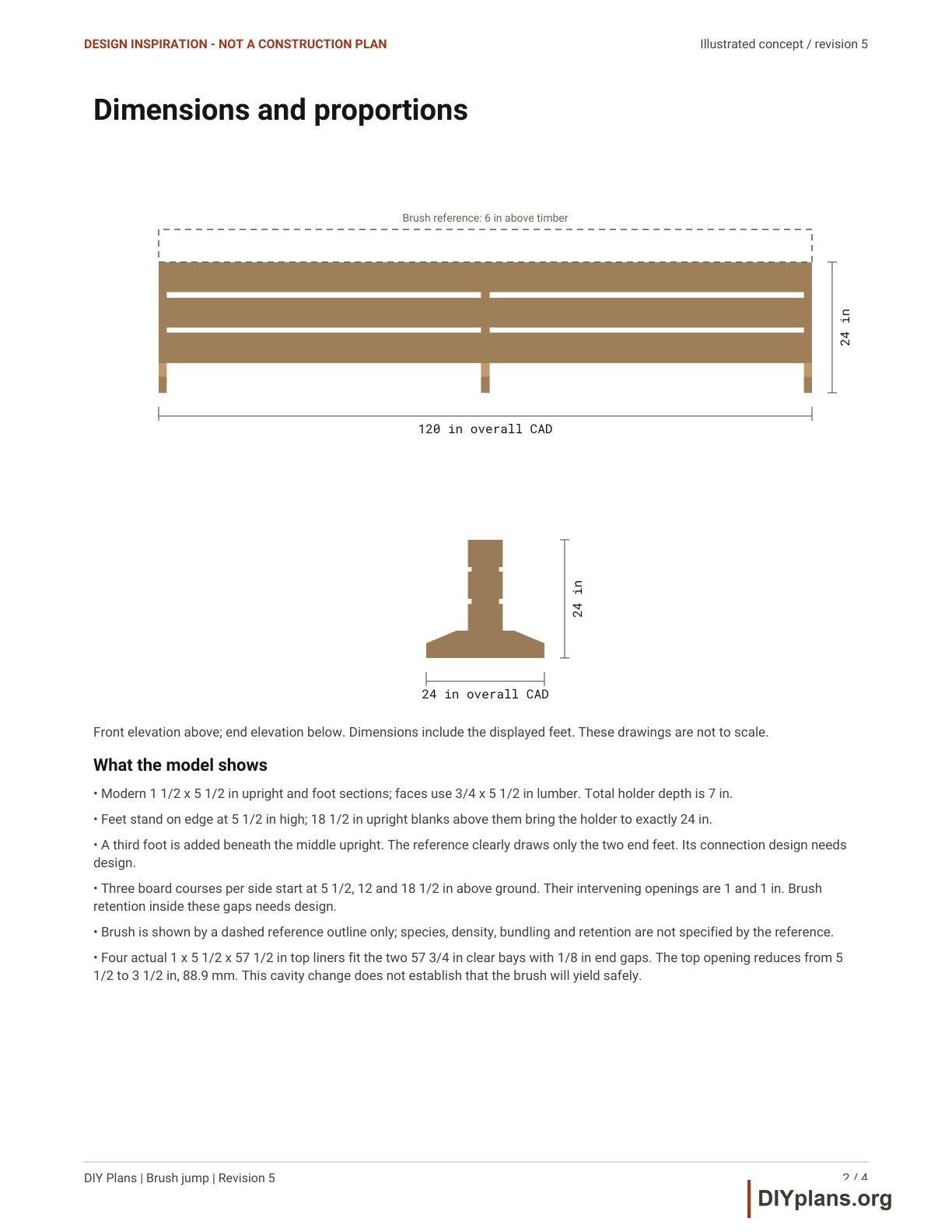

Dimensions and opening sizes
LengthIllustrated concept geometry; no use or load rating.
120 in
Timber holder heightIllustrated concept geometry; no use or load rating.
24 in
Foot lengthIllustrated concept geometry; no use or load rating.
24 in
Illustrated brush projectionIllustrated concept geometry; no use or load rating.
6 in
Illustrated total with brushIllustrated concept geometry; no use or load rating.
30 in
Shopping list
Download shopping list
BuyMaterialStock size
2 boardSouthern Pine No.2 2 x 6, UC4A for feet8 ft
6 boardSouthern Pine Industrial 45 1 x 6, UC3B minimum12 ft
2 boardSouthern Pine 5/4 x 6 liner stock, actual 1 x 5 1/2 in10 ft
Quantity notes

Indicative full-stock allocation for comparing the illustrated timber concept. This is not a complete purchase order. Hardware, structural connections, coatings, ground anchorage and installation materials are outside this timber takeoff. Brush and its retention system are also excluded.

  • Southern Pine No.2 2 x 6, UC4A for feet, 8 ft: Three 24 in feet and three 18 1/2 in uprights across two boards with kerfs.
  • Southern Pine Industrial 45 1 x 6, UC3B minimum, 12 ft: Cut each to 120 in. Extra stock length allows clean end trimming.
  • Southern Pine 5/4 x 6 liner stock, actual 1 x 5 1/2 in, 10 ft: Two 57 1/2 in liners per board. UC3B minimum; retention/fasteners unresolved.
Tools & equipment
  • FreeCAD for editing the native solid model
  • STEP-compatible CAD software for exchange geometry

BEFORE YOU BUILD

Use this work at your own risk

These files have not been checked for accuracy, safety, structural adequacy, or building-code compliance. They may contain serious errors and are not construction-ready. Obtain independent qualified design and review before building.

No person or organization makes any guarantee or warranty, express or implied, regarding this design, its documentation, digital files, or website views. They are not professional services and do not create an architect-client or other professional-client relationship. No promise is made about accuracy, completeness, reliability, code compliance, or fitness for your project.

Buildings and building projects are complex, and many things can go wrong. You are responsible for checking dimensions and site conditions, choosing suitable materials and methods, obtaining permits, following codes and manufacturer instructions, and getting qualified professional help when needed. To the fullest extent permitted by law, DIYPlans.org disclaims liability for damages resulting from use of this work. Read the FAQ about your responsibilities.

Instructions

Download

Step 1 Read the holder proportions

  • The main timber form is 120 in long with 24 in feet and a 24 in timber top. The three frame centers are 3/4, 60 and 119 1/4 in.

Check: Separate the timber height from the dashed brush reference.

Step 2 Follow the face-board pattern

  • Three horizontal boards on each side have lower edges at 5 1/2, 12 and 18 1/2 in above ground. The two visible gaps create the open-board appearance.

Check: Identify the six face boards and their spacing.

Step 3 Look into the top opening

  • Four liners, each 1 x 5 1/2 x 57 1/2 in, sit within the two clear bays with 1/8 in end gaps. They reduce the illustrated opening to 3 1/2 in.

Check: Locate the four liners and the 3 1/2 in cavity.

Step 4 Explore the planting-like texture

  • Use the drawing to explore the brush silhouette and color. The dashed brush is a visual reference only; its material, density and retention are not modeled or included in the timber count.

Check: Keep any brush appearance study separate from a specified physical insert.
