12×16 gable shed

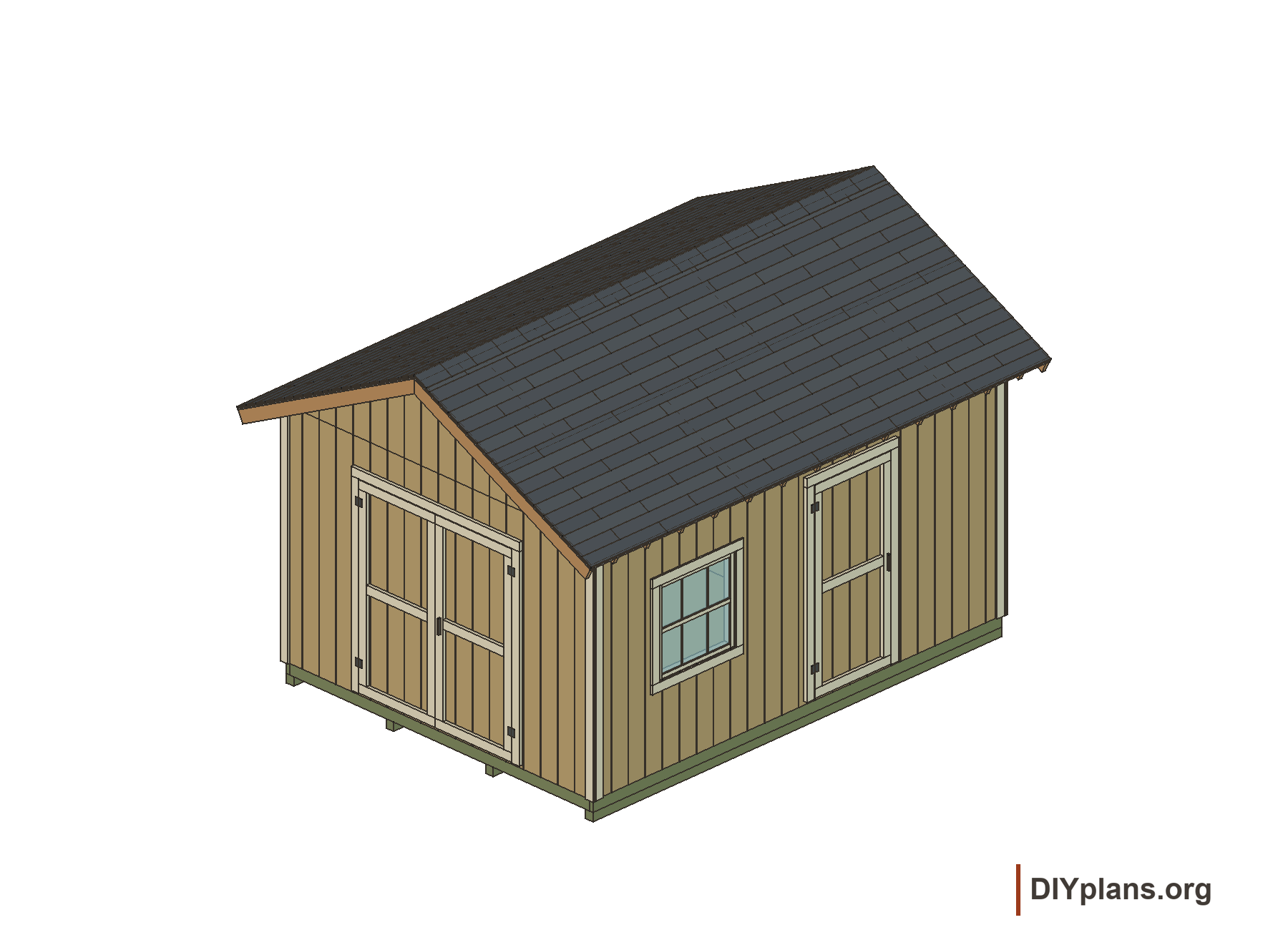

A 192-square-foot shed with front double doors and a gable roof. Choose a side window and entry door, or a solid side wall.
About this plan

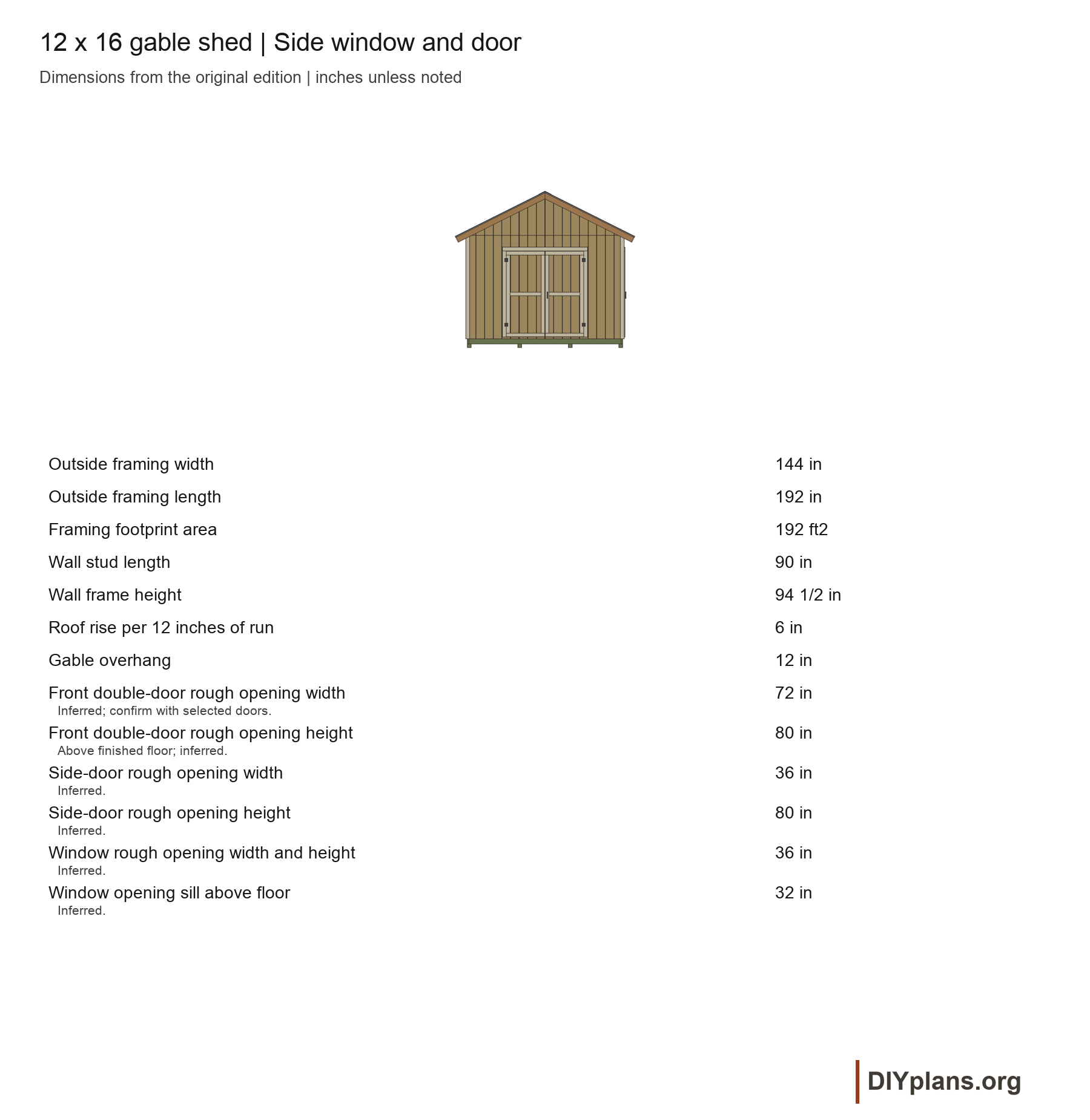

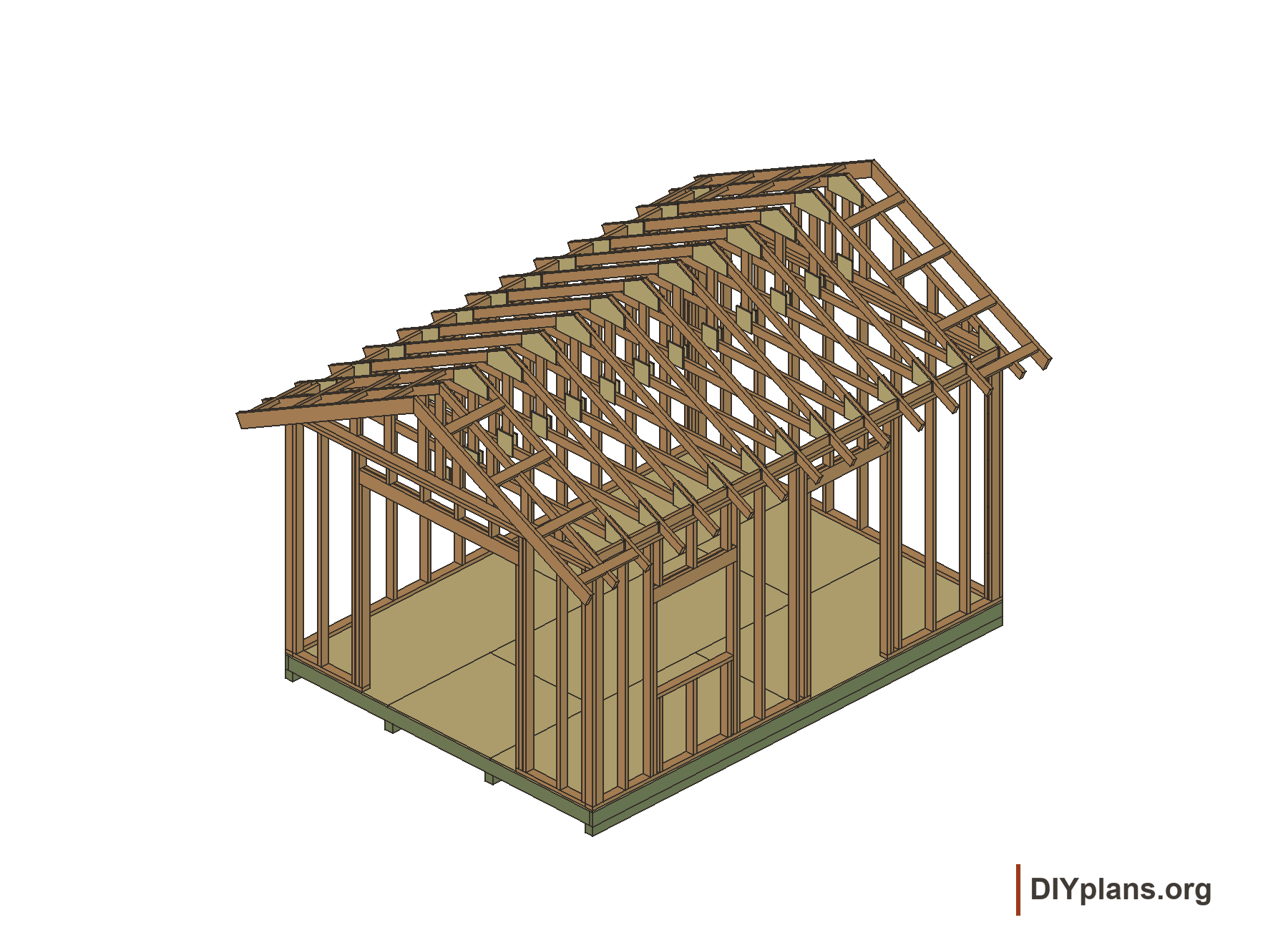

Plan a shed for garden equipment, tools and outdoor storage. Both configurations share a 12-by-16-foot framing footprint, a raised wood floor on four skids and a 6:12 gable roof. Each configuration includes its own editable CAD model, STEP file, illustrated assembly guide and shopping list.
BEFORE YOU BUILD
Use this work at your own risk
No person or organization makes any guarantee or warranty, express or implied, regarding this design, its documentation, digital files, or website views. They are not professional services and do not create an architect-client or other professional-client relationship. No promise is made about accuracy, completeness, reliability, code compliance, or fitness for your project.
Buildings and building projects are complex, and many things can go wrong. You are responsible for checking dimensions and site conditions, choosing suitable materials and methods, obtaining permits, following codes and manufacturer instructions, and getting qualified professional help when needed. To the fullest extent permitted by law, DIYPlans.org disclaims liability for damages resulting from use of this work. Read the FAQ about your responsibilities.
