Purple martin birdhouse

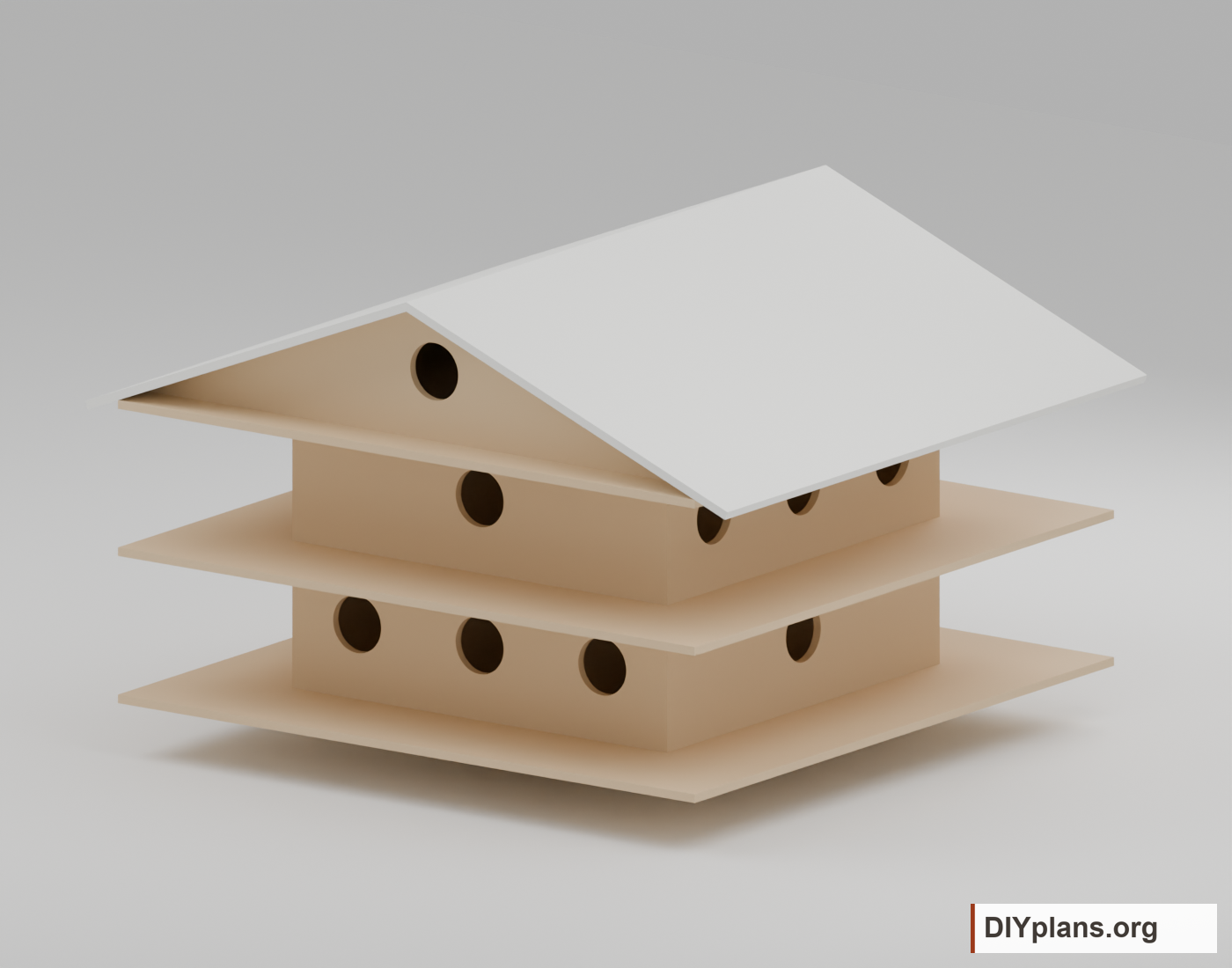

A plywood birdhouse with eight compartments per level, a removable roof and a central air shaft.
About this plan

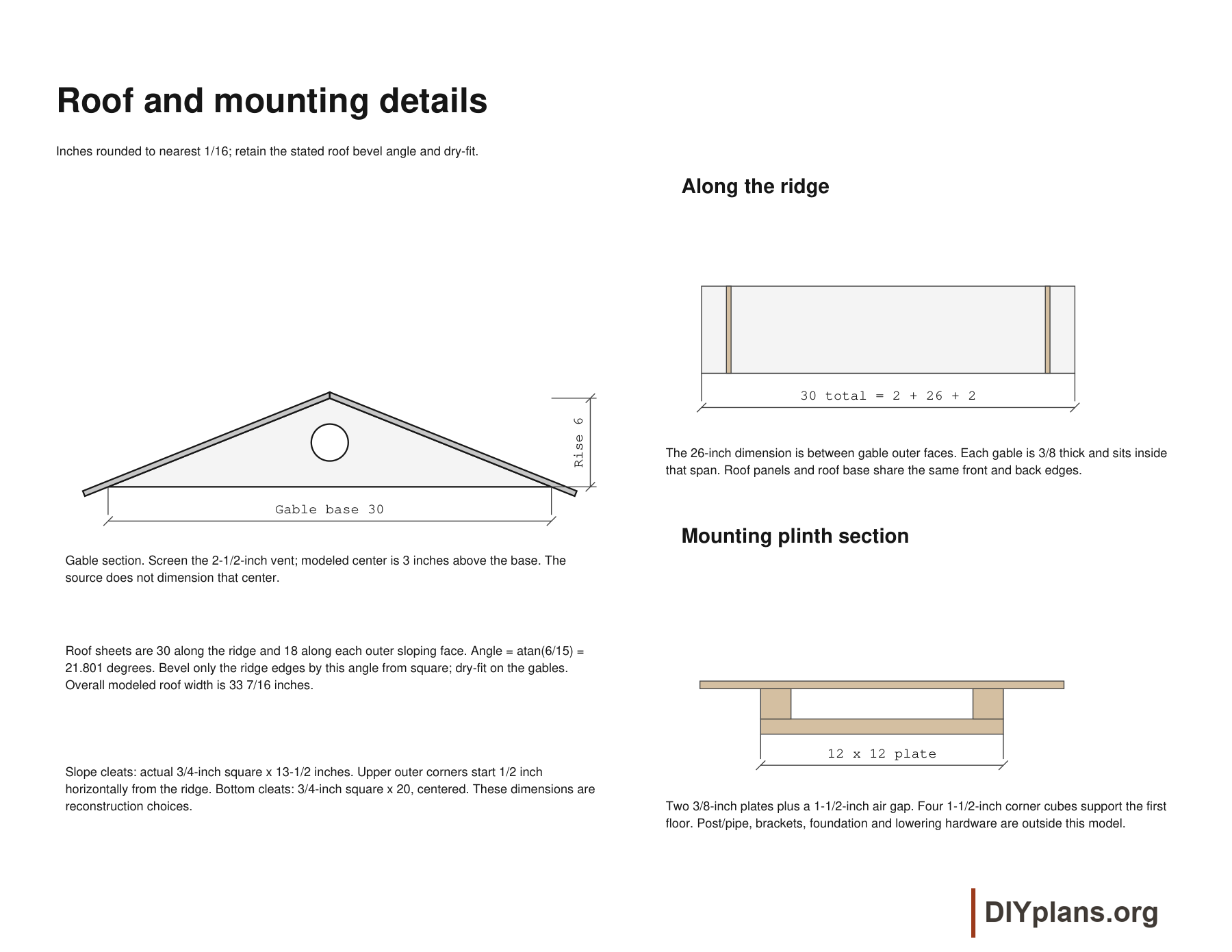

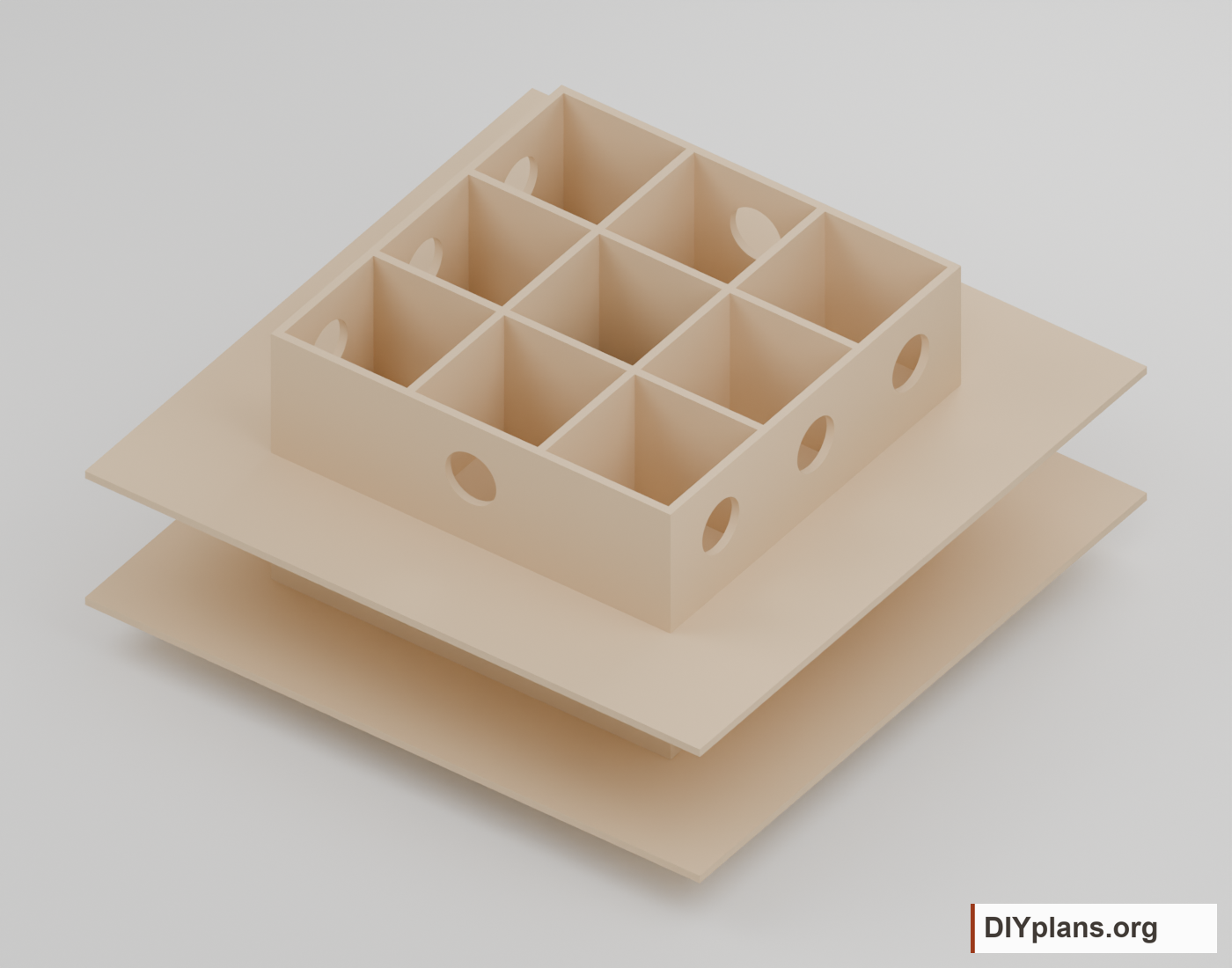

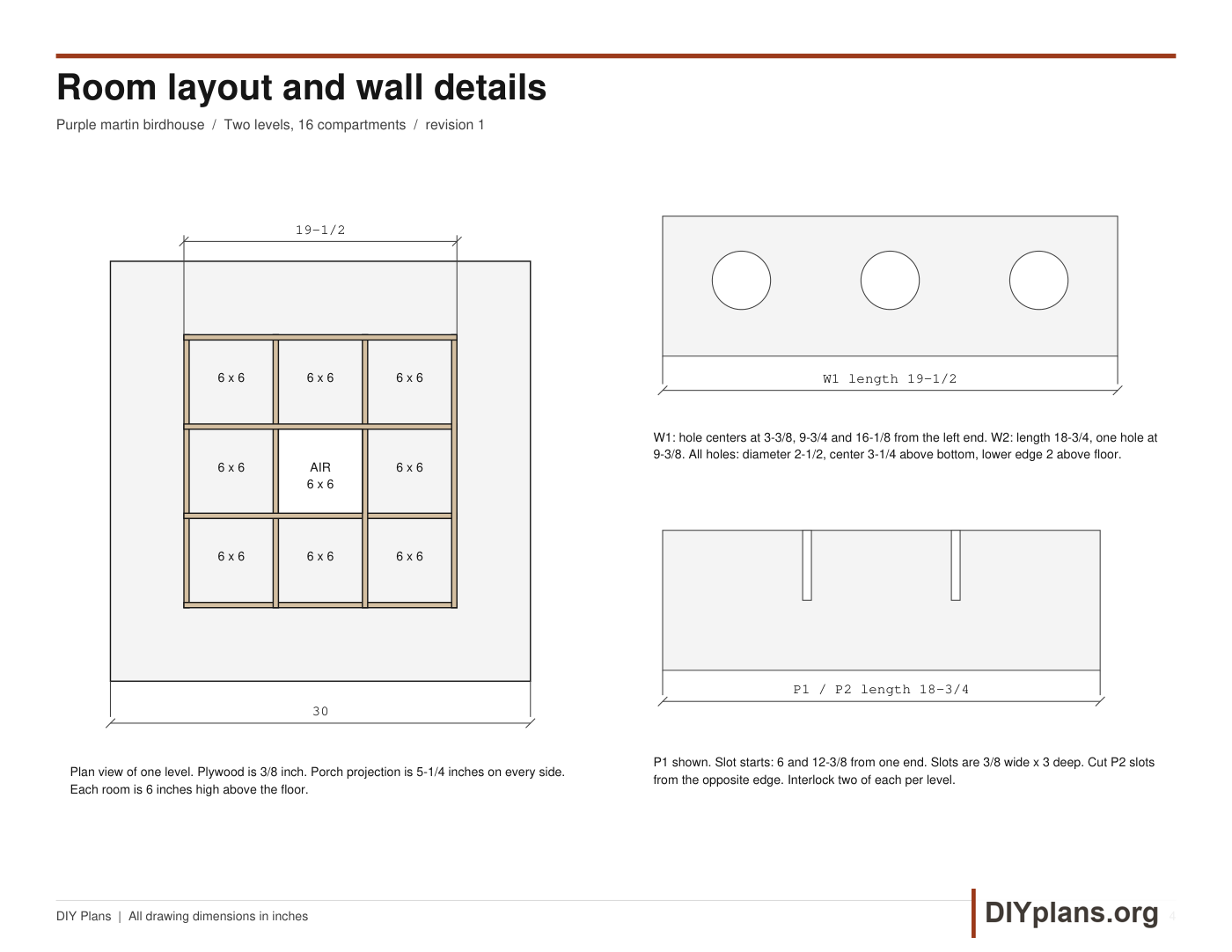

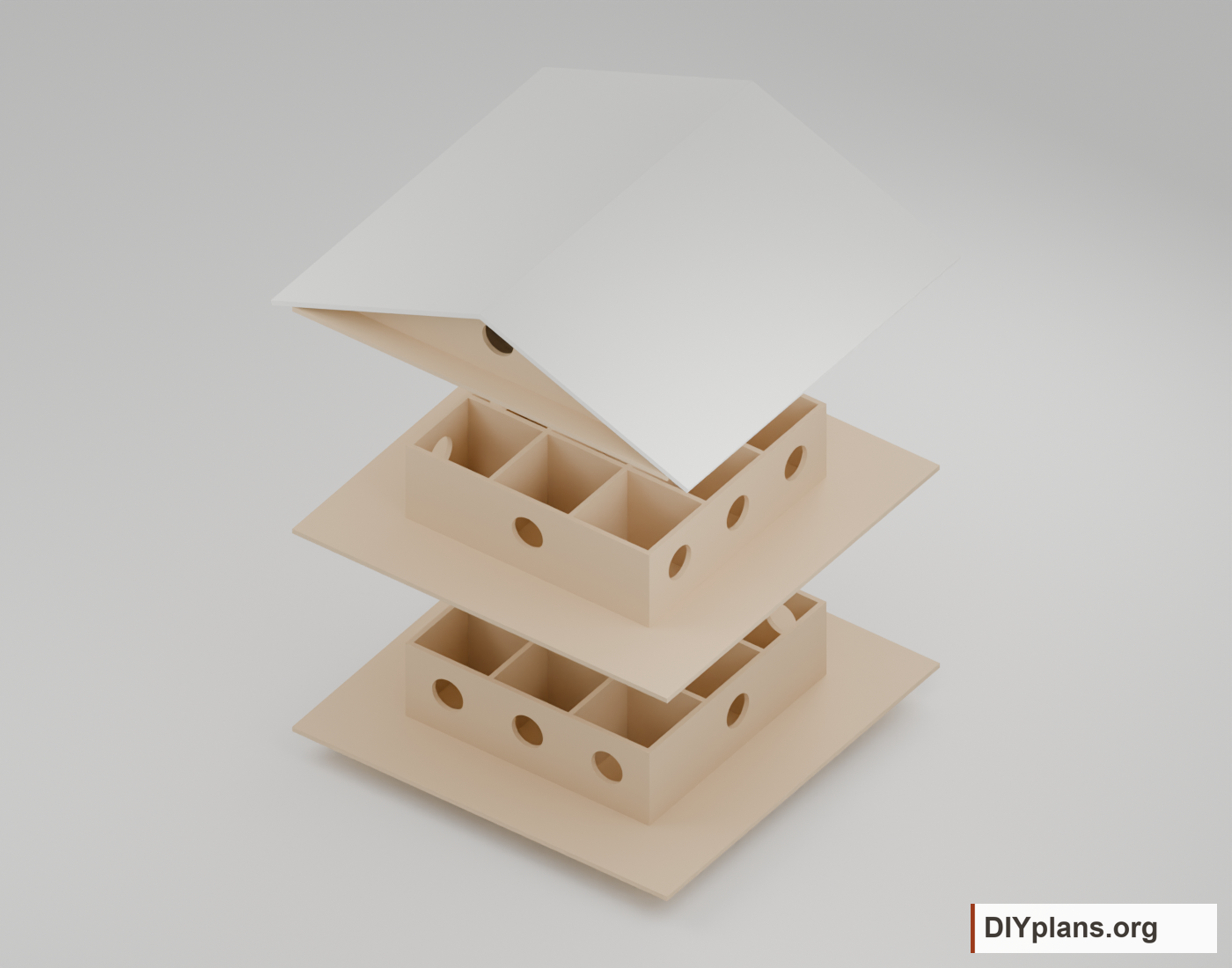

Choose one level with eight compartments or two levels with sixteen. The roof and upper level lift off for cleaning. The 6-inch rooms and 2-1/2-inch entrances differ from current purple martin housing recommendations.
BEFORE YOU BUILD
Use this work at your own risk
No person or organization makes any guarantee or warranty, express or implied, regarding this design, its documentation, digital files, or website views. They are not professional services and do not create an architect-client or other professional-client relationship. No promise is made about accuracy, completeness, reliability, code compliance, or fitness for your project.
Buildings and building projects are complex, and many things can go wrong. You are responsible for checking dimensions and site conditions, choosing suitable materials and methods, obtaining permits, following codes and manufacturer instructions, and getting qualified professional help when needed. To the fullest extent permitted by law, DIYPlans.org disclaims liability for damages resulting from use of this work. Read the FAQ about your responsibilities.
CC CC BY-NC-SA 4.0 InternationalShare and adapt this free design for noncommercial purposes with appropriate credit. Link to the license, indicate changes, and license adaptations under the same terms.
Sources
Based on the 1969 Purple Martin Birdhouse drawing hosted by North Dakota State University. Models, drawings and instructions by DIY Plans.
